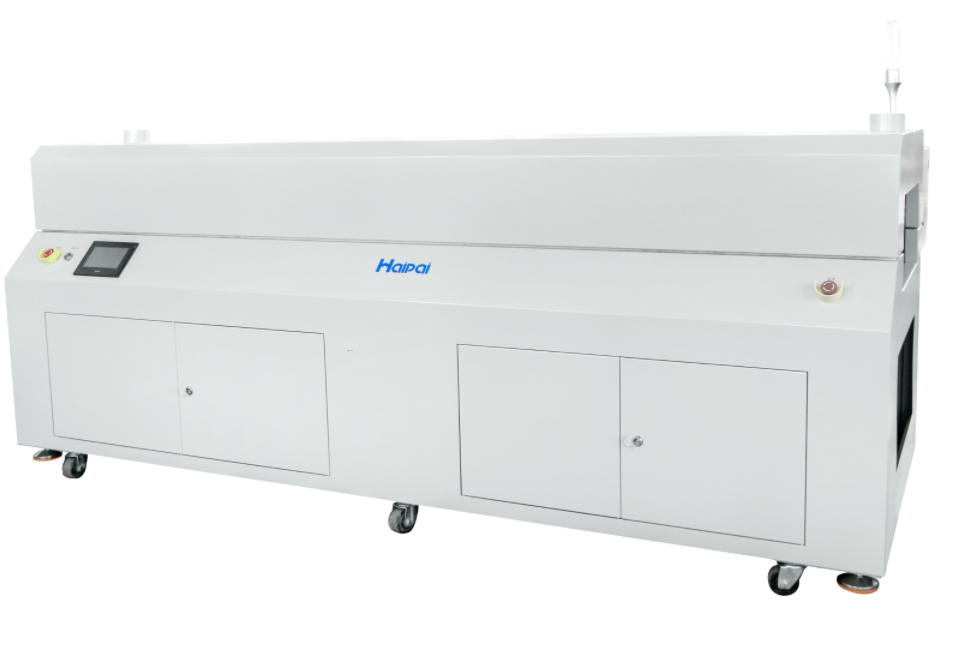

Model Number: HP-IR3DS-6
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Packaging Details: Wooden case with vacuum package inside
Delivery Time: 30 working days
Payment Terms: T/T
|
Double-Layer Design:
|
6 Temperature Zones (3 Upper + 3 Lower) For Twice The Curing Capacity
|
6 Heating Tubes Per Zone:
|
Uniform Heat Distribution For Consistent Curing Results
|
Fast Warm-up:
|
<15 Minutes To Operating Temperature Minimizes Downtime
|
Thick Insulation:
|
Minimizes Heat Loss, Reduces Energy Consumption, And Prevents Ambient Temperature Rise
|
Electric Lid Opening:
|
Software-controlled For Easy Maintenance Access
|
Large Component Clearance:
|
±110mm For Assembled Boards With Tall Components
|
SMEMA Interface:
|
Seamless Integration With SMT Lines
|
Reinforced High-Temp Guide Rails:
|
Anti-vibration Support Prevents Track Shaking And Board Fall-off
|
|
Double-Layer Design:
|
6 Temperature Zones (3 Upper + 3 Lower) For Twice The Curing Capacity
|
|
6 Heating Tubes Per Zone:
|
Uniform Heat Distribution For Consistent Curing Results
|
|
Fast Warm-up:
|
<15 Minutes To Operating Temperature Minimizes Downtime
|
|
Thick Insulation:
|
Minimizes Heat Loss, Reduces Energy Consumption, And Prevents Ambient Temperature Rise
|
|
Electric Lid Opening:
|
Software-controlled For Easy Maintenance Access
|
|
Large Component Clearance:
|
±110mm For Assembled Boards With Tall Components
|
|
SMEMA Interface:
|
Seamless Integration With SMT Lines
|
|
Reinforced High-Temp Guide Rails:
|
Anti-vibration Support Prevents Track Shaking And Board Fall-off
|
| Parameter | Specification |
|---|---|
| Model | HP-IR3DS-6 |
| External Dimensions (L*W*H) | L3000mm * W1080mm * H1300mm |
| Weight | Approx. 580 kg |
| Control Method | PLC + Touch Screen |
| PCB Transfer Height | 910±20mm |
| Conveyor Speed | 0.5-3.5m/min adjustable |
| Transfer Motor | Stepper motor |
| Conveyor Type | Chain conveyor (35B 5mm extended pin stainless steel chain) |
| PCB Width | MAX: 450mm |
| Rail Width Adjustment | Electrically adjustable, 50-450mm |
| Number of Temperature Zones | 6 total (3 upper tracks + 3 lower tracks) |
| Heating Tubes per Zone | 6 pieces |
| Temperature Control Range | Room temperature - 100°C |
| Warm-up Time | <15 minutes |
| Max PCB Size | L450mm * W450mm |
| Component Clearance | ±110mm max |
| Cover Opening Method | Software control, electric lifting |
| Frame Construction | T1.5 steel plate welded |
| Power Supply | AC380V, 50Hz, 3-phase 5-wire |
| Total Power | 19KW |
| Interface | SMEMA |
