Product Details
Place of Origin: China
Brand Name: Haipai
Certification: CE,ISO9001

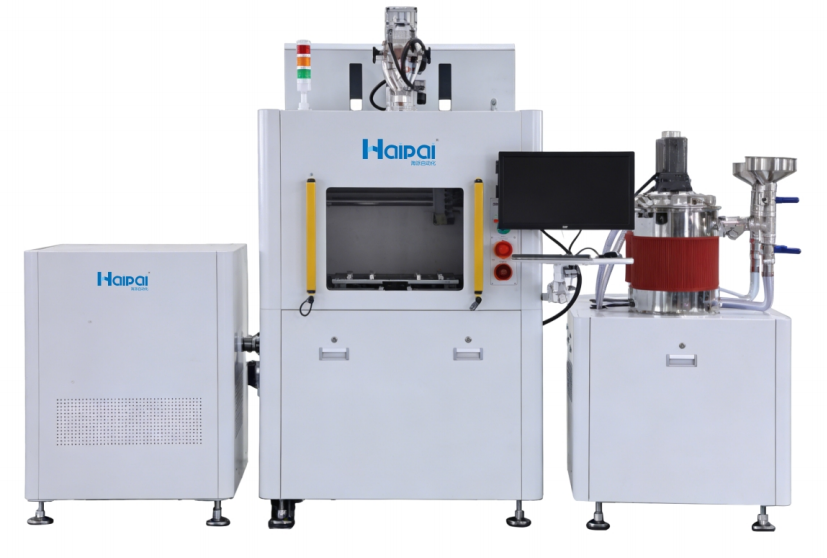

Model Number: HP-VP450
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Packaging Details: Wooden case with vacuum package inside
Delivery Time: 30 working days
Payment Terms: T/T
|
Vacuum Potting Environment:
|
200Pa (2mbar) Ultimate Vacuum Eliminates Bubbles And Voids For Perfect Encapsulation
|
Precision Dispensing:
|
±2% Dispensing Accuracy (based On 10g Benchmark) For Consistent Material Volume
|
High Viscosity Capability:
|
Handles Materials Up To 100,000cP Operational Viscosity
|
Flexible Mixing Ratio:
|
Adjustable From 100:100 To 100:20 Or 100:20 To 100:10 For Two-part Material Systems
|
Dual Dispensing Speed Options:
|
Choose 1g/s~15g/s Or 5g/s~30g/s Based On Application Needs
|
Anti-Curing Function:
|
Prevents Material Hardening In Mixing Head During Pauses
|
Automatic Cleaning:
|
Fully Automatic Draining/cleaning For Easy Material Changeover
|
SMEMA Line Integration:
|
Standard Interface For Seamless Communication In Automated SMT Lines
|
|
Vacuum Potting Environment:
|
200Pa (2mbar) Ultimate Vacuum Eliminates Bubbles And Voids For Perfect Encapsulation
|
|
Precision Dispensing:
|
±2% Dispensing Accuracy (based On 10g Benchmark) For Consistent Material Volume
|
|
High Viscosity Capability:
|
Handles Materials Up To 100,000cP Operational Viscosity
|
|
Flexible Mixing Ratio:
|
Adjustable From 100:100 To 100:20 Or 100:20 To 100:10 For Two-part Material Systems
|
|
Dual Dispensing Speed Options:
|
Choose 1g/s~15g/s Or 5g/s~30g/s Based On Application Needs
|
|
Anti-Curing Function:
|
Prevents Material Hardening In Mixing Head During Pauses
|
|
Automatic Cleaning:
|
Fully Automatic Draining/cleaning For Easy Material Changeover
|
|
SMEMA Line Integration:
|
Standard Interface For Seamless Communication In Automated SMT Lines
|
| Parameter | Specification |
|---|---|
| Model | HP-VP450 |
| Machine Dimensions | L2900*W1520*H2000mm |
| Weight | Approx. 1000KG |
| Control System | Industrial PC + Monitor + Motion Control Card |
| Operation Method | Start switch |
| Single-Head Working Range | 400mm (X) * 400mm (Y) * 100mm (Z) |
| Motion Speed (X-Y) | 0-500mm/s |
| Motion Speed (Z) | 0-200mm/s |
| Drive Method | Servo motor + ball screw |
| Operational Viscosity | Up to 100,000cP |
| Dispensing Accuracy | ±2% (based on 10g benchmark) |
| Mixing Ratio (Option 1) | 100:100 to 100:20 adjustable |
| Mixing Ratio (Option 2) | 100:20 to 100:10 adjustable |
| Glue Dispensing Speed (Option 1) | 1g/s ~ 15g/s |
| Glue Dispensing Speed (Option 2) | 5g/s ~ 30g/s |
| Metering Method | Stepper motor + gear pump / screw pump |
| Anti-Curing Function | Available |
| Cleaning Function | Fully automatic draining |
| Vacuum Chamber Ultimate Vacuum | 200Pa (2mbar) |
| Power | AC220V 50Hz, 8.5KW |
| Interface | SMEMA |
| Working Environment | Temperature: 0-40°C, Humidity: 20-90% |
