UV Curing Standard Automatic Conformal Coating Line SMEMA Compliant

Name: UV Curing Standard Automatic Conformal Coating Line SMEMA Compliant
Brand: Shenzhen Haipai Holding Co., Ltd
SKU: HP-211 + HP-730 + HP-212 + HP-UV106FM + HP-213
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Haipai

Certification: CE,ISO9001

Model Number: HP-211 + HP-730 + HP-212 + HP-UV106FM + HP-213

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Wooden case with vacuum package inside

Delivery Time: 30 working days

Payment Terms: T/T

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                            UV Curing Conformal Coating Line, Conformal Coating Line SMEMA


Fully Integrated Turnkey Line:	Seamlessly Connects Feeding, Coating, Leveling, UV Curing, And Inspection Into One Cohesive System.	Ultra-High Precision Coating:	Servo-driven Dispensers Deliver ±0.02mm Repeatability, Eliminating Manual Masking And Ensuring Consistent Results.
Rapid UV Curing Technology:	6KW Mercury Lamp (365nm Peak) Cures Coatings In Seconds—dramatically Faster Than Thermal Methods.	Superior Coating Quality:	Instant UV Curing Eliminates Thermal Stress And Enhances Chemical Resistance And Adhesion.
SMEMA-Compliant Workflow:	Ensures Perfect Synchronization, Eliminates Transfer Errors, And Maximizes Production Speed.

Fully Integrated Turnkey Line:	Seamlessly Connects Feeding, Coating, Leveling, UV Curing, And Inspection Into One Cohesive System.
Ultra-High Precision Coating:	Servo-driven Dispensers Deliver ±0.02mm Repeatability, Eliminating Manual Masking And Ensuring Consistent Results.
Rapid UV Curing Technology:	6KW Mercury Lamp (365nm Peak) Cures Coatings In Seconds—dramatically Faster Than Thermal Methods.
Superior Coating Quality:	Instant UV Curing Eliminates Thermal Stress And Enhances Chemical Resistance And Adhesion.
SMEMA-Compliant Workflow:	Ensures Perfect Synchronization, Eliminates Transfer Errors, And Maximizes Production Speed.

UV Curing Standard Automatic Conformal Coating Line SMEMA Compliant

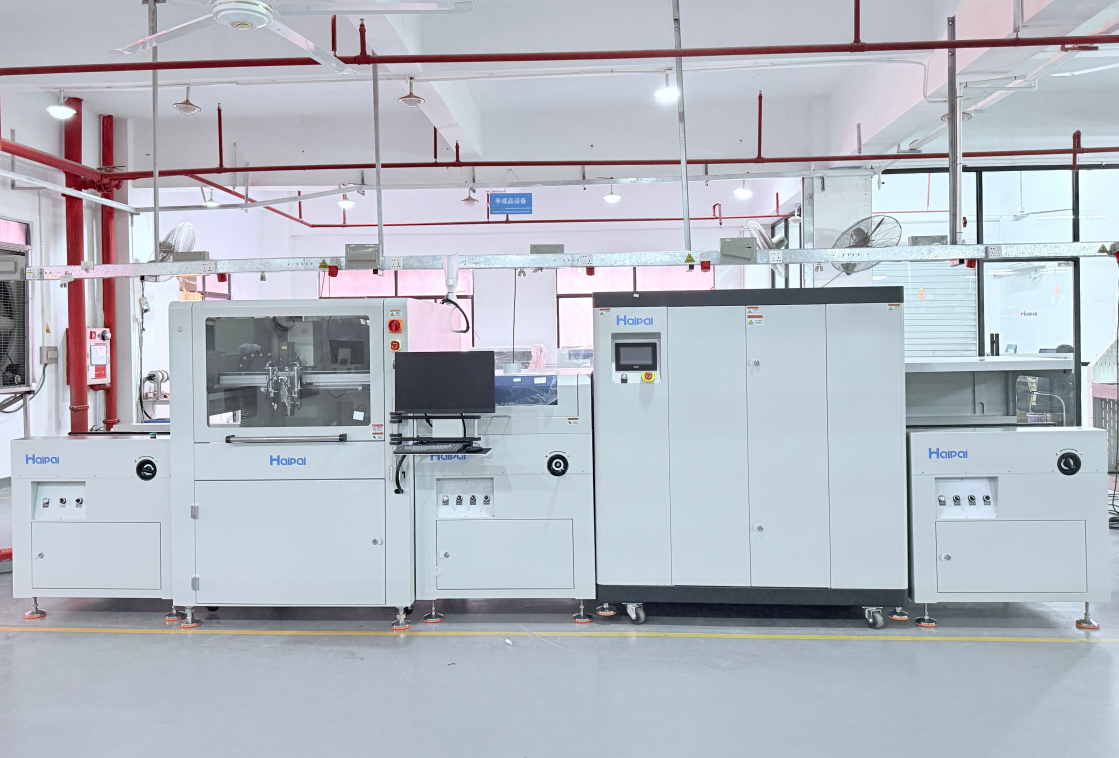

UV Curing Standard Automatic Conformal Coating Line SMEMA Compliant 0

Ultra-High Precision Automated Conformal Coating Line with Rapid UV Curing Technology and SMEMA-Compliant Workflow

Single-Machine Single-Oven Configuration

The HP-730+UV106FM Automated Conformal Coating Production Line is a complete turnkey solution that combines high-precision selective coating with advanced UV curing technology to deliver unparalleled processing speed, quality, and efficiency.

System Overview

This fully integrated line seamlessly connects an automatic feeding conveyor, the HP-730 Selective Coating Machine, a sealing inspection conveyor, the HP-UV106FM UV Curing Oven, and an inspection collection station into one cohesive system.

Key Components & Technology

HP-730 Selective Coating Machine

Features servo-driven dispensers that achieve ±0.02mm repeatability for precise, selective application of UV-curable conformal coatings. This eliminates the need for manual masking and ensures consistent results board after board.

HP-UV106FM UV Curing Oven

Equipped with a powerful 6KW mercury lamp (200-400nm wavelength with 365nm peak) that delivers high-intensity UV energy to cure coatings in seconds. Features electronic power adjustment from 50-100% and dual overheat protection for precise, safe curing.

UV Technology Advantages

Instant curing enables immediate handling and further processing
Eliminates thermal stress on sensitive components
Produces coatings with superior chemical resistance and adhesion
Dramatically faster than traditional thermal methods

SMEMA Integration & Applications

With SMEMA integration at every stage, this line ensures perfect workflow synchronization, eliminates transfer errors, and creates a continuous, high-speed manufacturing environment ideal for automotive, medical, aerospace, and high-reliability electronics applications.

Production Process

Manually place the PCBA boards to be coated (component side up) into the automatic feeding conveyor
The boards are transferred from the automatic feeding conveyor into the conformal coating machine for the spraying process
After coating, the PCBA boards enter a sealing inspection conveyor for buffering and leveling, before proceeding into the UV curing oven for final curing
Following curing, the boards move to the inspection and collection station for manual sampling inspection and removal
