Product Details
Place of Origin: China
Brand Name: Haipai
Certification: CE,ISO9001

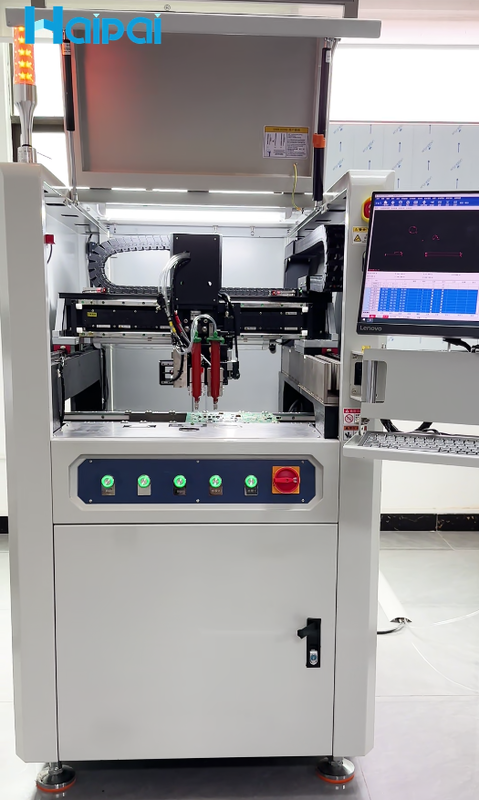

Model Number: HP-D302
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Packaging Details: Wooden case with vacuum package inside
Delivery Time: 30 working days
Payment Terms: T/T
|
Piezoelectric Jet Technology:
|
H-Y01 Valve With Customizable Nozzle For Precision Non-contact Dispensing
|
Ultra-High Speed:
|
1000mm/s Maximum Movement For Maximum Throughput
|
Exceptional Precision:
|
±0.01mm Repeat Accuracy With Servo + Grinding Screw Drive
|
CCD Visual Positioning:
|
Automatic Calibration And Real-time Error Correction
|
Visual Programming:
|
Online Programming From Board Images For Simple, Fast Setup
|
Automatic Width Adjustment:
|
50-400mm Track Width With SMEMA Integration
|
|
Piezoelectric Jet Technology:
|
H-Y01 Valve With Customizable Nozzle For Precision Non-contact Dispensing
|
|
Ultra-High Speed:
|
1000mm/s Maximum Movement For Maximum Throughput
|
|
Exceptional Precision:
|
±0.01mm Repeat Accuracy With Servo + Grinding Screw Drive
|
|
CCD Visual Positioning:
|
Automatic Calibration And Real-time Error Correction
|
|
Visual Programming:
|
Online Programming From Board Images For Simple, Fast Setup
|
|
Automatic Width Adjustment:
|
50-400mm Track Width With SMEMA Integration
|
| Parameter | Specification |
|---|---|
| Model | HP-D302 |
| External Dimensions (L*W*H) | L990mm * W1350mm * H1600mm |
| Weight | 1000 kg |
| Control System | Industrial PC + Motion Control Card |
| Programming Method | Online visual programming |
| CCD Visual Positioning | Automatic calibration and error correction |
| Maximum Component Height | 50mm |
| X, Y, Z Axis Drive | Servo Motor + Precision Grinding Lead Screw |
| Maximum Movement Speed | 1000mm/s |
| Repeatability Precision | ±0.01mm |
| Dispensing Travel Range | X=400mm, Y=400mm, Z=50mm |
| Valve Configuration | 2x H-Y01 piezoelectric injection valves |
| Valve Spacing Adjustment | Electrically adjustable |
| Dispensing Capacity | 30CC / 50CC |
| Automatic Width Adjustment | Single lane, 50-400mm |
| Conveyor Speed | 0.5-3.5m/min adjustable |
| Alarm System | Menu display + sound/light alarm |
| Power Supply | 220V 50-60Hz |
| Air Pressure | 6.2 kgf/cm² |
| Total Power | 3KW |
| Communication Interface | SMEMA |
| Remarks | Standard CCD camera included |
