Product Details
Place of Origin: China
Brand Name: Haipai
Certification: CE,ISO9001

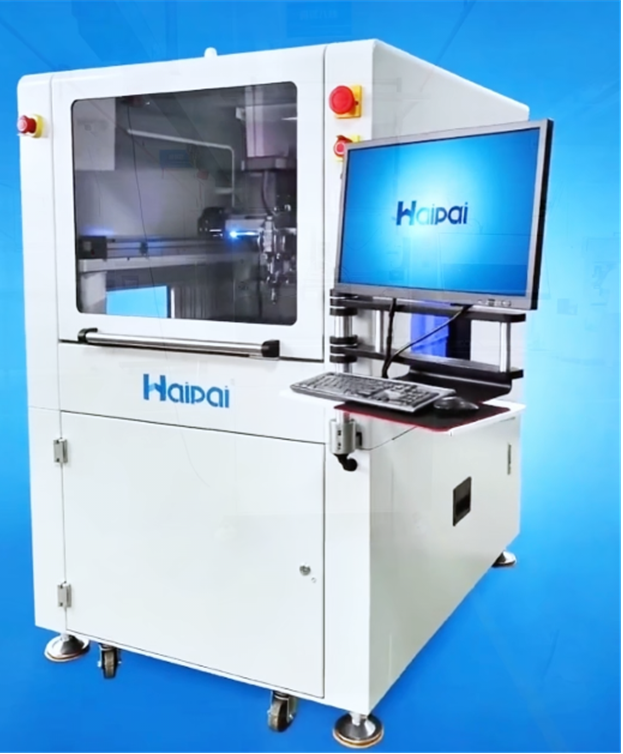

Model Number: HP-730
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Packaging Details: Wooden case with vacuum package inside
Delivery Time: 30 working days
Payment Terms: T/T
|
Compact Footprint, Full-Size Performance:
|
Industrial-grade Precision In A Space-saving Design.
|
High-Precision Coating:
|
Achieves ±0.02mm Repeatability With Servo Motor Drives.
|
Dual-Valve Versatility:
|
Equipped With Both A Precision Atomization Valve And A Needle Dispensing Valve.
|
Flexible PCB Handling:
|
Electrically Adjustable Conveyor Accommodates PCBs From 50-450mm Wide.
|
User-Friendly Programming:
|
Combines Manual Teaching And Mouse-keyboard Input For Quick Setup.
|
Seamless Integration:
|
Standard SMEMA Interface For Connectivity With Other SMT Equipment.
|
|
Compact Footprint, Full-Size Performance:
|
Industrial-grade Precision In A Space-saving Design.
|
|
High-Precision Coating:
|
Achieves ±0.02mm Repeatability With Servo Motor Drives.
|
|
Dual-Valve Versatility:
|
Equipped With Both A Precision Atomization Valve And A Needle Dispensing Valve.
|
|
Flexible PCB Handling:
|
Electrically Adjustable Conveyor Accommodates PCBs From 50-450mm Wide.
|
|
User-Friendly Programming:
|
Combines Manual Teaching And Mouse-keyboard Input For Quick Setup.
|
|
Seamless Integration:
|
Standard SMEMA Interface For Connectivity With Other SMT Equipment.
|
| Machine Dimensions | L1060mm × W1200mm × H1650mm |
| Control Method | Industrial control machine + board card control |
| Programming Method | Manual teaching + mouse button |
| PCB Transmission Height | 910±20mm |
| Transport Speed | 0.5-3.5m/min adjustable |
| Delivery Method | Chain conveying (35B 5mm lengthened pin with baffle stainless steel chain) |
| Transmission Motor | Independent control of double stepper motor |
| Conveyor Width | 50-450mm adjustable |
| PCB Component Height | Up and down, MAX: 110mm |
| Rail Width Adjustment | Stepper motor drives double ball screw, electric adjustment |
| X.Y.Z Driving Mode | Servo motor + screw module drive |
| X.Y Maximum Speed | 800mm/s |
| Z Maximum Speed | 300mm/s |
| XYZ Axis Repeat Accuracy | ±0.02mm |
| Valve Type | 1 precision atomization valve H-905 and 1 needle dispensing valve H-D01 |
| Material Tank Volume | 10L stainless steel inner pressure tank + 2L stainless steel cleaning pressure tank |
| Cleaning Function | Integrated cleaning system |
| Lighting | Integrated lighting source |
| Testing | Integrated UV detection light source |
| Power Supply | AC220V 50Hz |
| Gas Source | 4-6kgf/cm² |
| Equipment Weight | Approx. 500kg |
| Total Power | 1.8kW |
