Fine Atomizing Valve With Extended Nozzle Liquid Gas Hybrid Spray Valve

Name: Fine Atomizing Valve With Extended Nozzle Liquid Gas Hybrid Spray Valve
Brand: Shenzhen Haipai Holding Co., Ltd
SKU: H-908A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Haipai

Model Number: H-908A

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Delivery Time: 15 working days

Payment Terms: T/T

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Fine Atomizing Valve, Atomizing Valve With Extended Nozzle, Liquid Gas Hybrid Spray Valve


Extended Nozzle:	25mm Longer Than H-908 For Tall Component Clearance (up To 50mm)	Small-Area Precision:	Optimized For Detailed Coating In High-density Boards
Bidirectional Pneumatic Control:	Precise, Responsive Coating Regulation	Wide Thickness Range:	5-200µm For Various Coating Requirements
Adjustable Width::	4-12mm Coating Width Via 7mm Nozzle	Consistent Accuracy::	±1mm Splash Range For Uniform Coverage

Extended Nozzle:	25mm Longer Than H-908 For Tall Component Clearance (up To 50mm)
Small-Area Precision:	Optimized For Detailed Coating In High-density Boards
Bidirectional Pneumatic Control:	Precise, Responsive Coating Regulation
Wide Thickness Range:	5-200µm For Various Coating Requirements
Adjustable Width::	4-12mm Coating Width Via 7mm Nozzle
Consistent Accuracy::	±1mm Splash Range For Uniform Coverage

Fine Atomizing Valve With Extended Nozzle Liquid Gas Hybrid Spray Valve

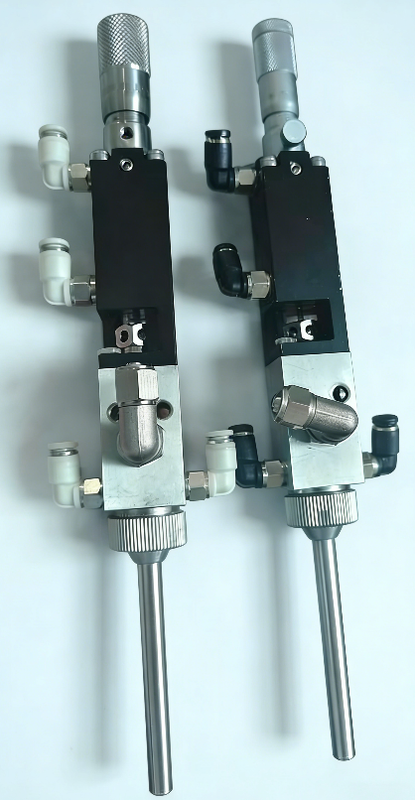

H-908A Fine Atomization Valve with Extended Nozzle

The H-908A is a specialized version of our popular H-908 fine atomization valve, featuring an extended nozzle 25mm longer than the standard model. This design enables the valve to reach coating areas around components up to 50mm tall—ideal for boards with tall connectors, electrolytic capacitors, or other high-profile parts.

Advanced Valve Technology

Like the H-908, this is a liquid-gas hybrid spray valve with a bidirectional pneumatic mechanism for precise control. Internal flow distribution and guidance structures ensure consistent spray patterns, while the specialized fluid sealing design extends service life and reduces maintenance frequency.

Performance Specifications

Coating thickness range: 5-200 µm
Adjustable coating width: 4-12mm via 7mm nozzle
Splash accuracy: ±1mm (material-dependent)
Viscosity range: 50-1000 CPS
Material compatibility: Acrylic, silicone, UV adhesive, and various liquid coatings

Technical Specifications

Parameter	Specification
Model	H-908A
Valve Type	Fine atomization valve (liquid-gas hybrid)
Nozzle Length	25mm longer than H-908
Component Height Capacity	Up to 50mm
Mechanism	Bidirectional pneumatic valve
Nozzle Diameter	7mm
Seal Design	Specialized fluid sealing for reduced maintenance
Maintenance Cycle	Check consumables every 90 working days
Cleaning	Flush with matching diluent after each use

Maintenance Requirements

All specifications and maintenance requirements are identical to the standard H-908. Check internal consumables every 90 working days and flush with matching diluent after each use to ensure optimal performance and extended service life.
