HP-T661-2 Dual Valve Countertop Coating Machine 500W Single Y Platform

Name: HP-T661-2 Dual Valve Countertop Coating Machine 500W Single Y Platform
Brand: Shenzhen Haipai Holding Co., Ltd
SKU: HP-T661-2
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Haipai

Certification: CE,ISO9001

Model Number: HP-T661-2

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Wooden case with vacuum package inside

Delivery Time: 30 working days

Payment Terms: T/T

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Dual Valve Countertop Coating Machine, Countertop Coating Machine 500W, Single Y Countertop Coating Machine


Dual-Valve Configuration:	H-905 Spray + H-D01 Dispensing For Maximum Process Flexibility	High Precision:	±0.02mm Repeatability With Servo + Screw Drive
Complete Fluid System:	10L Material + 2L Cleaning Tanks For Extended Runs	Versatile Coating Modes:	Points, Lines, Arcs, Circles, And Irregular Curves
Teach Pendant Programming:	Intuitive Operation With Exportable Programs	Servo Motor Drive:	Superior Precision, Smoothness, And Rigidity Compared To Stepper Systems

Dual-Valve Configuration:	H-905 Spray + H-D01 Dispensing For Maximum Process Flexibility
High Precision:	±0.02mm Repeatability With Servo + Screw Drive
Complete Fluid System:	10L Material + 2L Cleaning Tanks For Extended Runs
Versatile Coating Modes:	Points, Lines, Arcs, Circles, And Irregular Curves
Teach Pendant Programming:	Intuitive Operation With Exportable Programs
Servo Motor Drive:	Superior Precision, Smoothness, And Rigidity Compared To Stepper Systems

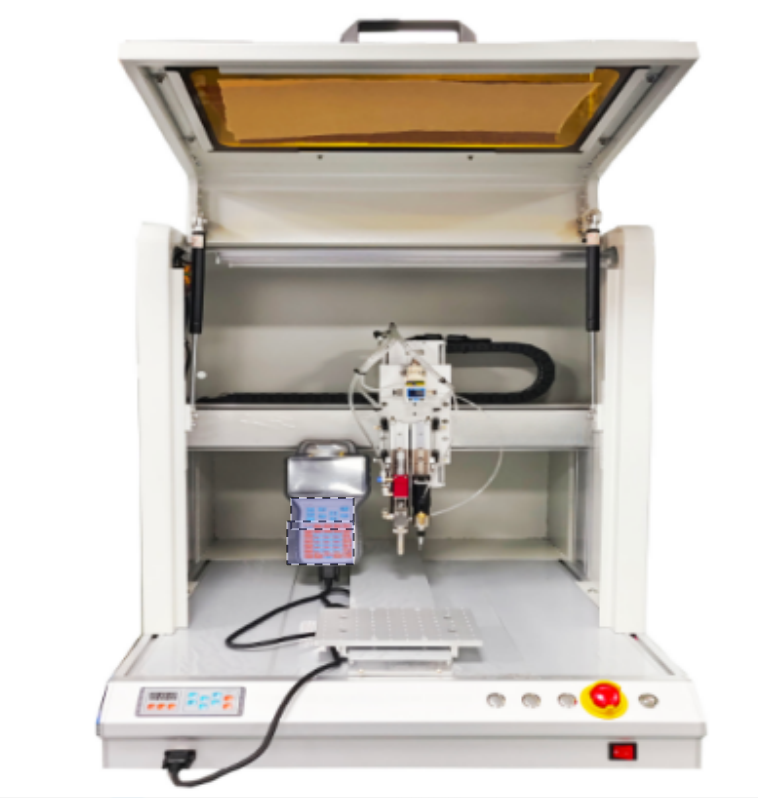

HP-T661-2 Dual Valve Countertop Coating Machine 500W Single Y Platform

HP-T661-2 Counter Top Coating Machine

Single Y-platform Dual-Valve Configuration

Product Overview

The HP-T661-2 Desktop Coating Machine is a high-performance, large-format desktop coating system engineered for manufacturers requiring precision, versatility, and reliability in a compact footprint. With an expansive 500*500*100mm maximum single-side coating area, this machine accommodates larger PCBs and workpieces than typical desktop coaters, making it ideal for medium to large-format applications.

Advanced Drive System: The servo motor + screw drive system provides superior precision, smoother operation, and higher rigidity compared to stepper-motor-based competitors. This high-performance system achieves ±0.02mm repeatability at speeds up to 500mm/s (X/Y) and 300mm/s (Z), ensuring consistent, accurate coating results across thousands of production cycles.

Dual-Valve Configuration: Combines an H-905 precision atomization valve for fine, uniform spray coating with an H-D01 impact needle dispensing valve for spot applications, underfill, and precision dispensing. This versatile setup handles a wide range of coating materials and patterns.

Key Features

Large 500*500*100mm maximum single-side coating area
Servo motor + screw drive system for superior precision
±0.02mm repeat positioning accuracy
High-speed operation: 500mm/s (X/Y) and 300mm/s (Z)
Dual-valve configuration for versatile coating applications
Continuous filling function for complex patterns
Single Y-platform design with imported linear guides
Teach pendant programming with 150 program storage capacity
10L stainless steel pressure tank + 2L cleaning tank

Technical Specifications

Model	HP-T661-2
Max. Single-side Coating Area	L500mm * W500mm * H100mm
Machine Dimensions (LWH)	L825mm * W890mm * H800mm (including outer casing)
Weight	110 kg
Drive System	Servo motor + screw control
Motor System	Servo precision motor
Repeat Positioning Accuracy	±0.02mm
Travel Speed (X, Y)	Up to 500 mm/s
Travel Speed (Z)	Up to 300 mm/s
Valve Configuration	1x H-905 precision atomization valve + 1x H-D01 impact needle dispensing valve
Tank Capacity	10L stainless steel pressure tank (non-stirring) + 2L stainless steel cleaning tank
Linear Guide	Imported brand, spindle with dual guide rail drive
Workbench	Single Y-platform
Teaching Method	Teach pendant (programs exportable for reuse)
Program Storage	150 program groups
Control System	Independently developed motion control
Power Supply	AC220V 50Hz 500W
