Product Details
Place of Origin: China
Brand Name: Haipai
Certification: CE,ISO9001
Model Number: HP-211
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Packaging Details: Wooden case with vacuum package inside
Delivery Time: 30 working days
Payment Terms: T/T
|

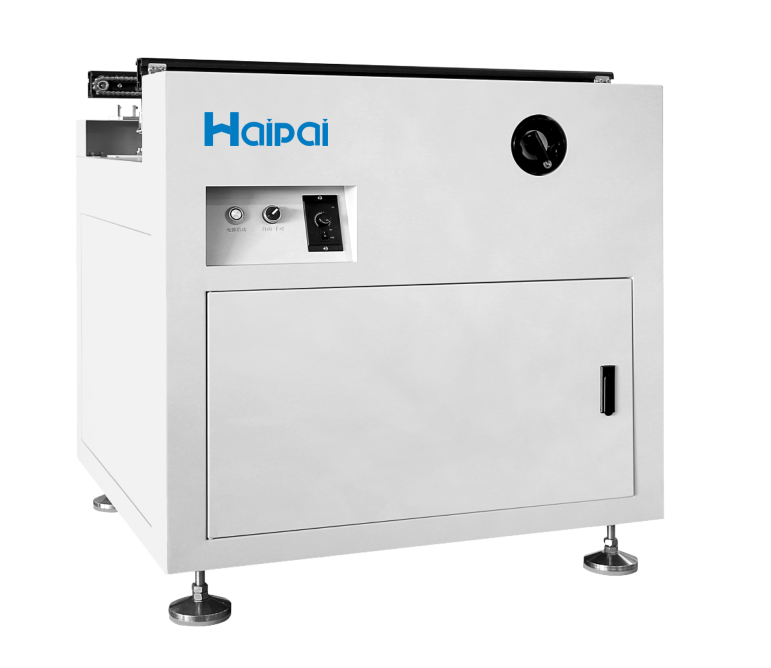

Reliable PCB Transport:
|
Stepper Motor Drive With Chain Conveying For Consistent, Durable Performance.
|
Adjustable Speed & Width:
|
Conveyor Speed Adjustable From 0.5-3.5m/min; Width Fits PCBs From 50-450mm.
|
Standardized Integration:
|
SMEMA Interface For Seamless Connection With Other SMT Assembly Equipment.
|
Simple Operation:
|
User-friendly Button Control With Single-chip Computer Management.
|
|
Reliable PCB Transport:
|
Stepper Motor Drive With Chain Conveying For Consistent, Durable Performance.
|
|
Adjustable Speed & Width:
|
Conveyor Speed Adjustable From 0.5-3.5m/min; Width Fits PCBs From 50-450mm.
|
|
Standardized Integration:
|
SMEMA Interface For Seamless Connection With Other SMT Assembly Equipment.
|
|
Simple Operation:
|
User-friendly Button Control With Single-chip Computer Management.
|
| Specification | Details |
|---|---|
| Overall Dimensions | L900mm * W900mm * H970mm |
| PCB Transmission Height | 910±20mm |
| Transport Speed | 0.5-3.5m/min adjustable |
| Transmission Motor | Stepper motor |
| Delivery Method | Chain conveying (35B 5mm lengthened pin stainless steel chain) |
| Conveyor Width | 50-450mm Adjustable |
| Maximum PCB Size | L450mm * W450mm |
| PCB Component Height | Up and down: ±110mm |
| Control Method | Single-chip computer + Button control |
| Equipment Weight | Approximately 90KG |
| Power Supply | AC220V 50HZ |
| Total Power Consumption | 0.2KW |
