Product Details
Place of Origin: China
Brand Name: Haipai
Certification: CE,ISO9001
Model Number: HP-PC400-2
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Packaging Details: Wooden case with vacuum package inside
Delivery Time: 45 working days
Payment Terms: T/T
|

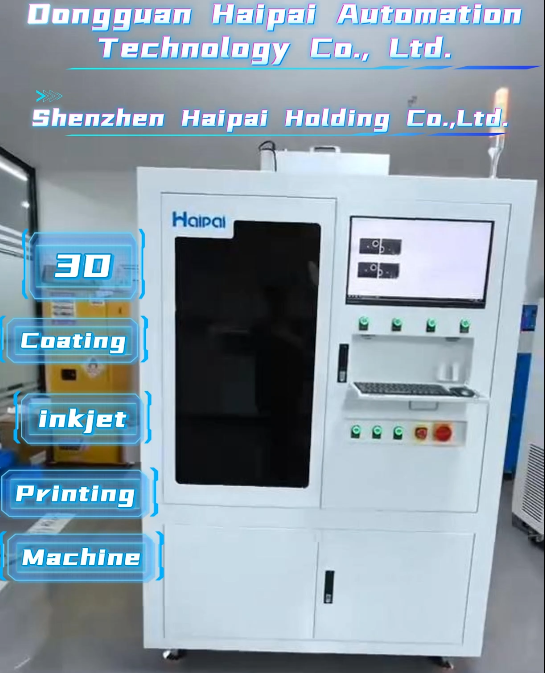

Advanced Piezoelectric Jetting:
|
Equipped With 2 Custom Print Heads (expandable To 4) For High-precision Coating Applications.
|
Exceptional Print Accuracy:
|
Achieves ±5μm Thickness Precision And ±0.02mm Axis Repeatability With Servo Motor Drive.
|
High-Precision Vision System:
|
500W Industrial Camera With 0.01mm/pixel Imaging Accuracy For Precise Alignment.
|
Supports High-Viscosity Materials:
|
InkCore X2506 Ink Path System Handles Viscosities From 20-100mPa·s At 25°C.
|
Integrated UV Pre-Curing:
|
Features 395nm Air-cooled LED System For Immediate Curing After Application.
|
High-Speed Production:
|
Maximum Print Speed Of 500mm/s With Single Print Thickness Of 20-50μm.
|
|
Advanced Piezoelectric Jetting:
|
Equipped With 2 Custom Print Heads (expandable To 4) For High-precision Coating Applications.
|
|
Exceptional Print Accuracy:
|
Achieves ±5μm Thickness Precision And ±0.02mm Axis Repeatability With Servo Motor Drive.
|
|
High-Precision Vision System:
|
500W Industrial Camera With 0.01mm/pixel Imaging Accuracy For Precise Alignment.
|
|
Supports High-Viscosity Materials:
|
InkCore X2506 Ink Path System Handles Viscosities From 20-100mPa·s At 25°C.
|
|
Integrated UV Pre-Curing:
|
Features 395nm Air-cooled LED System For Immediate Curing After Application.
|
|
High-Speed Production:
|
Maximum Print Speed Of 500mm/s With Single Print Thickness Of 20-50μm.
|
| External Dimensions | L1350mm * W1830mm * H1950mm |
|---|---|
| Control Method | Industrial PC + Tetris™ Industrial Printing Software |
| Programming Method | Import files, manual drag-and-drop, or image import programming |
| PCB Transmission Height | 910 ±20mm |
| Mode of Delivery | Chain conveyance, adjustable speed 0.5-3.5 m/min, PCB edge ≥3mm |
| Transmission Motor | Two-step motor independent control |
| Conveying Guide Rail Width | Electrically adjustable range: 50-400mm |
| Print Compatible Product Sizes | L400 * W400mm |
| Maximum Component Height | 20mm |
| Guide Rail Width Adjustment Drive | Stepper motor drives dual ball screws |
| X.Y.Z Drive Mode | Servo Motor + Screw Drive Module |
| Axis Repetition Accuracy | ±0.02mm |
| Maximum Print Speed | 500mm/s |
| Print Thickness | Single print: 20-50μm, multiple prints possible, accuracy: ±5μm |
| Nozzle Type | Custom piezoelectric nozzle (2 installed, 2 reserved positions) |
| Ink Path System | InkCore X2506 supports high viscosity, multi-nozzle printing |
| Visual Positioning System | 500W industrial camera with 0.01mm/pixel accuracy |
| Pre-curing System | UV LED, 395nm, air-cooled type |
| Clean Function | Built-in ink delivery system cleaning |
| Environmental Requirements | Light: 300lx-1000lx; Temperature: 17-28℃; Humidity: 30-70%RH |
| Electrical Requirements | AC380V three-phase five-wire; Power: 7KW; Air pressure: above 0.5Mpa |
| Equipment Weight | Approximately 1500KG |
| Dynamic Viscosity | 20-100mPa·s (25℃) |
|---|---|
| Jet Viscosity | 15-40mPa·s (45℃) |
| Surface Tension | 20-40mN/m |
| Grain Size | D99 <1000nm, D50 <600nm |
| Curing Method | UV curing, 395nm LED |
